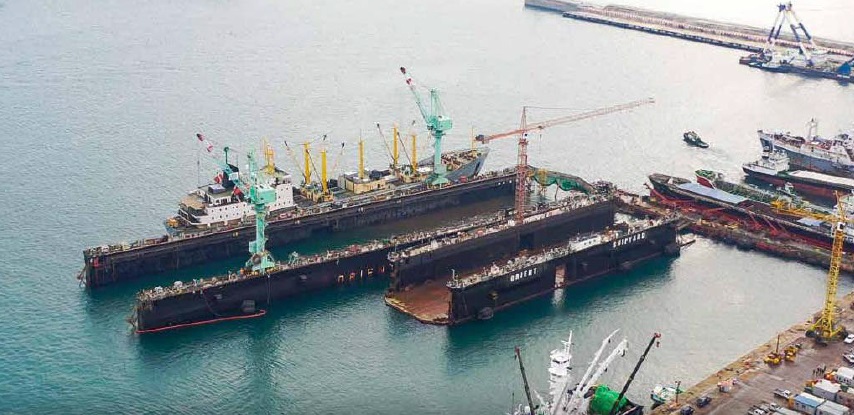

Orient Shipyard Co., LTD. possesses 82,000 TCL (TONNES LIFTING CAPACITY) 300 meters length floating docks able to drydock and repair up Handy size, Panamax size and even Cape size vessels.

Drydocking system of the floating docks shortens the time of entrance and exit of vessels, provides the best repair services through the KNOW-HOW of repairing works according to the various performance accumulated for a long time and does it's best to complete repairing until the customer desired date.

BUSAN YARD

25,000 TLC (210M) FLOATING DOCK

Main Particular

Length overall 210.0m
Breadth of outside tower wall(upper) 48.20m
Breadth of inside tower sall 39.20m
Depth of pontoon at centerline 6.25m
Height of tower deck 1.75m
Maximum submerging draft 15.60m
Lightweight (Equivalent draft of lightweight:1.34m) 12,871 tonnes
Maximum Lifting capacity abt.25,000 tonnes

Main Equipments

Ballast pump 3,000 m3/hr x 15m, 4 Sets
Fire & G/S Pump 60 m3/hr x 50m, 2 Sets
Bilge Pmup 48 m3/hr x 30m, 6 Sets
Mooring Winch 30/15 Tonnes x 10/20 m/Min, 4 Sets
Deck Crane 15t x (10~15m) / 8t x (15~28m), 2 Sets
Diesel Generator 750 Kw x 1,800 RPM, 2 Sets

GWANGYANG YARD

82,000 TLC (300M) FLOATING DOCK

Main Particular

Length overall 300.0m
Breadth of outside tower wall(upper) 69.96m
Breadth of inside tower sall 59.00m
Depth of pontoon at centerline 8.60m
Height of tower deck 23.20m
Maximum submerging draft 18.50m
Lightweight (Equivalent draft of lightweight:1.34m) 27,885.4 tonnes
Maximum Lifting capacity abt.82,000 tonnes

Main Equipments

Deck Crane main 45.0 t x 32.5m x 2 Sets sub 10.0t x 45.0m
Diesel Generator 1,000 Kw x 2 Sets
Ballast Pump 2,500 ton/hr x 12 Sets
G.S Pump 200 ton/hr x 2 Sets
Power Supply 400/220 volts, 60 Hz - 399 Kw
Alongside P/S of F/DOCK 350m
